Structural Analysis and Design

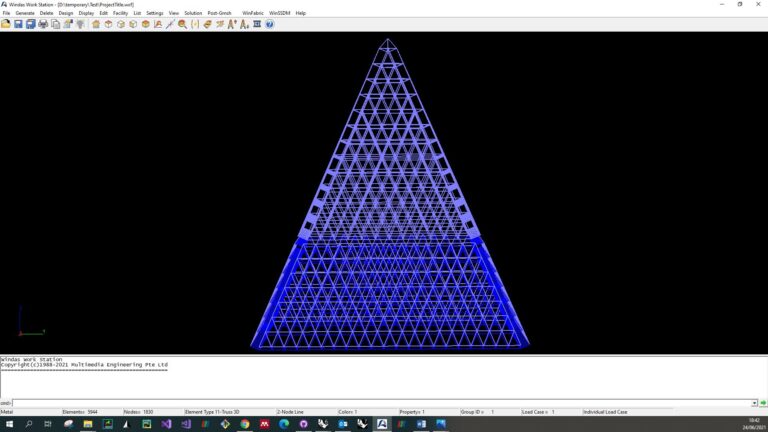

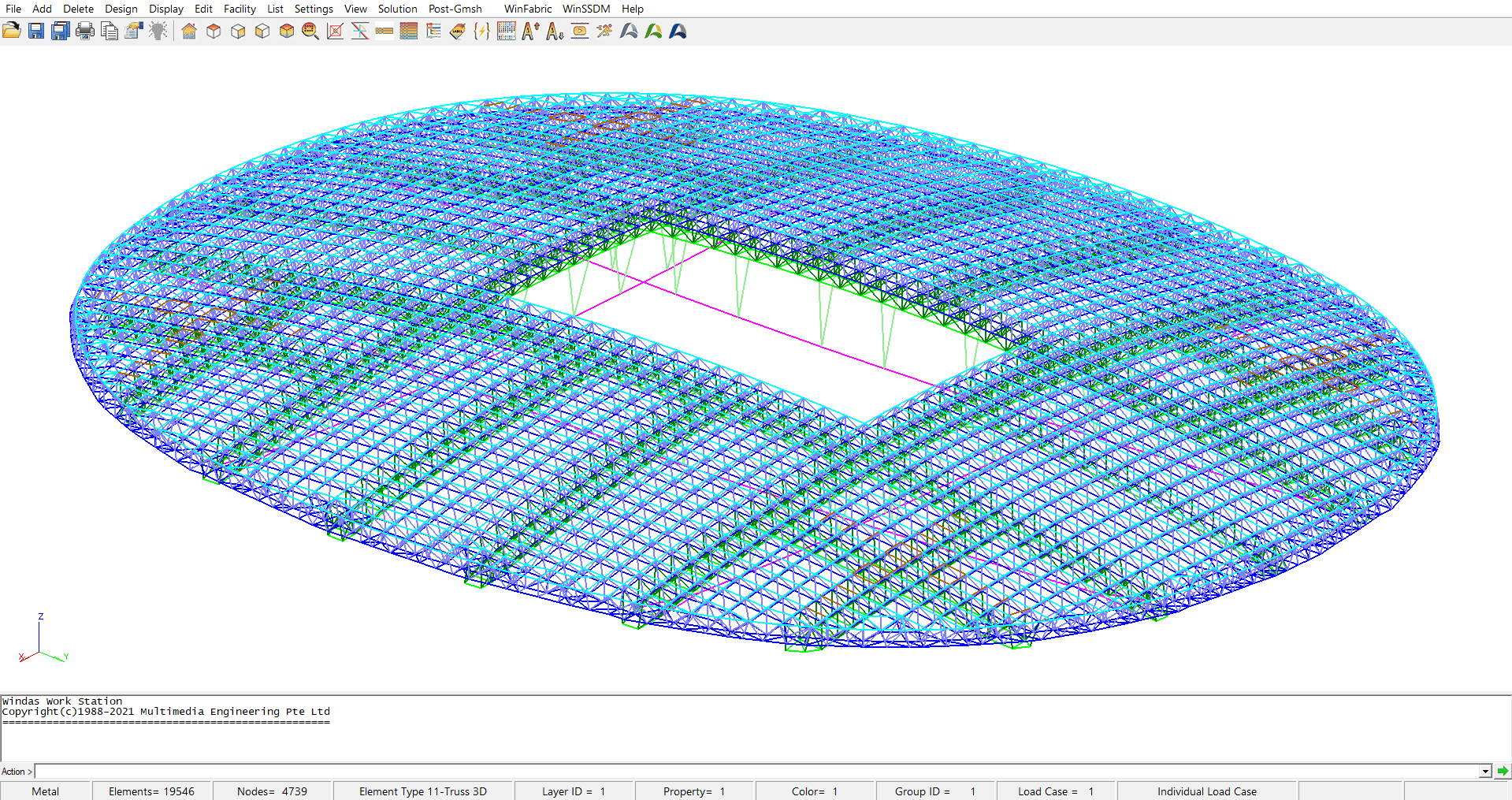

Windas Work Station

Windas is a specialized engineering software for design and fabrication of space frame, tensile membrane, ETFE cushion and TensiNet. Running on parallel and cluster, Windas accommodates unlimited number of elements & nodes for structural analysis and automatic design.

For more than 35 years, Windas Work Station has been used to design more than 1000+ large span or lightweight structure across the globe.

WinSSDM

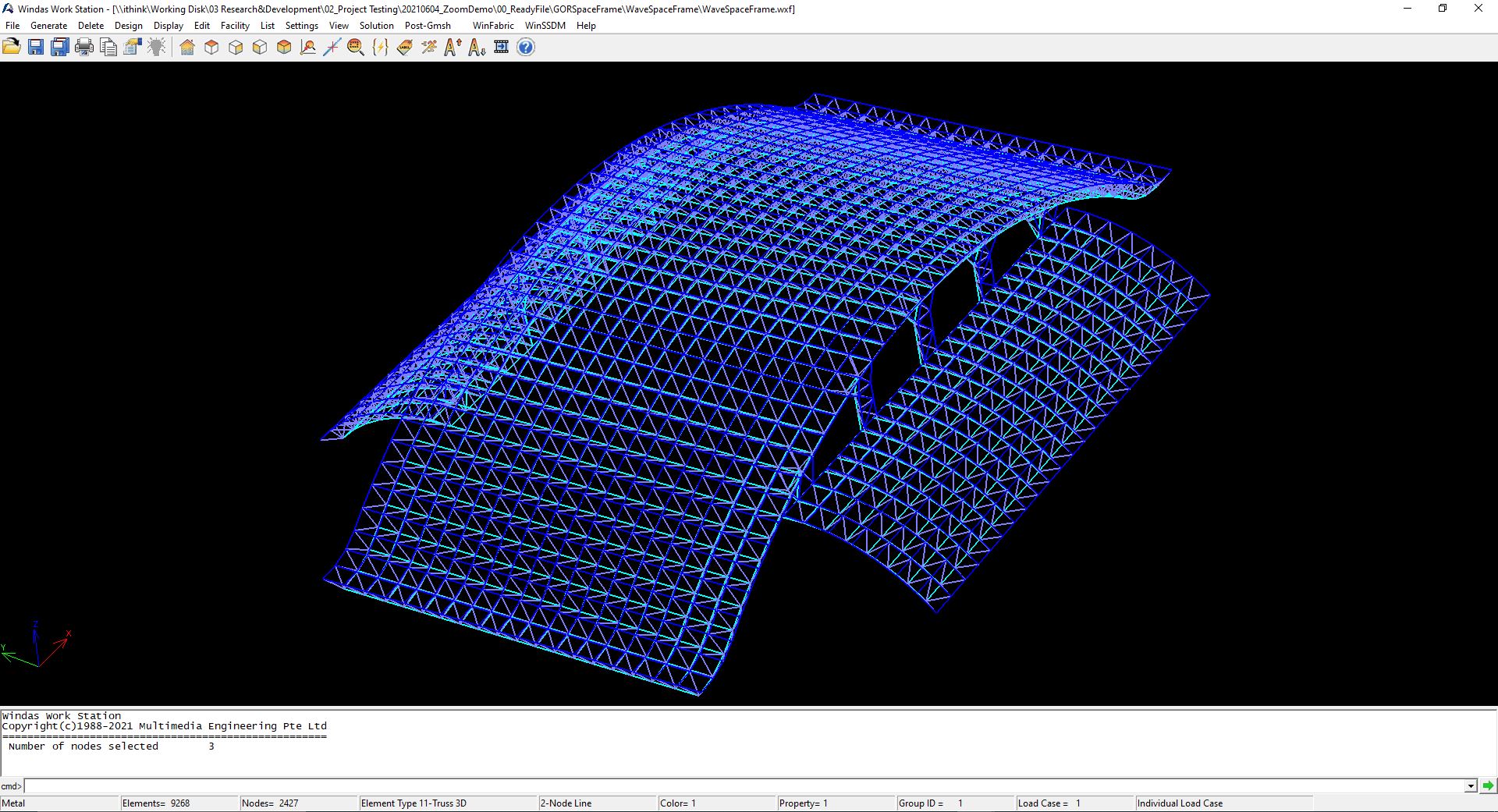

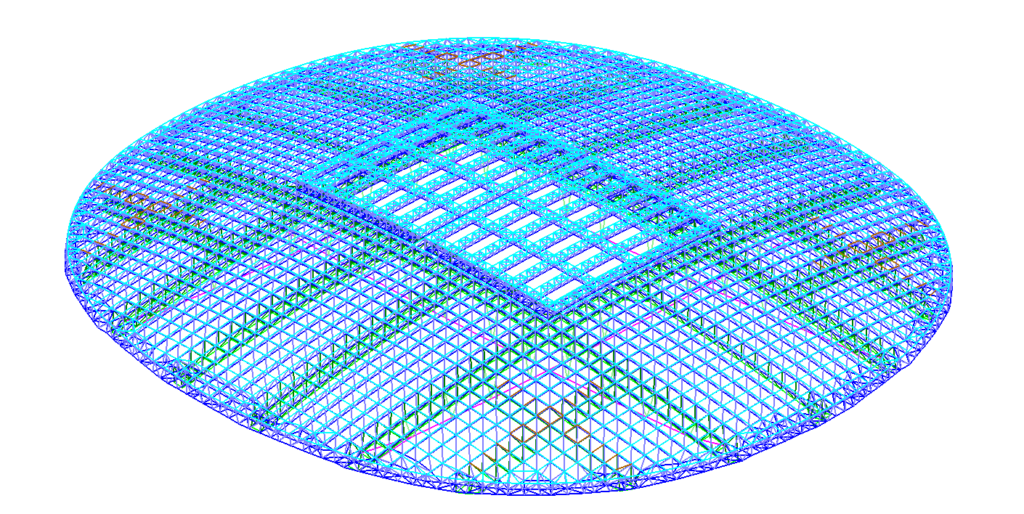

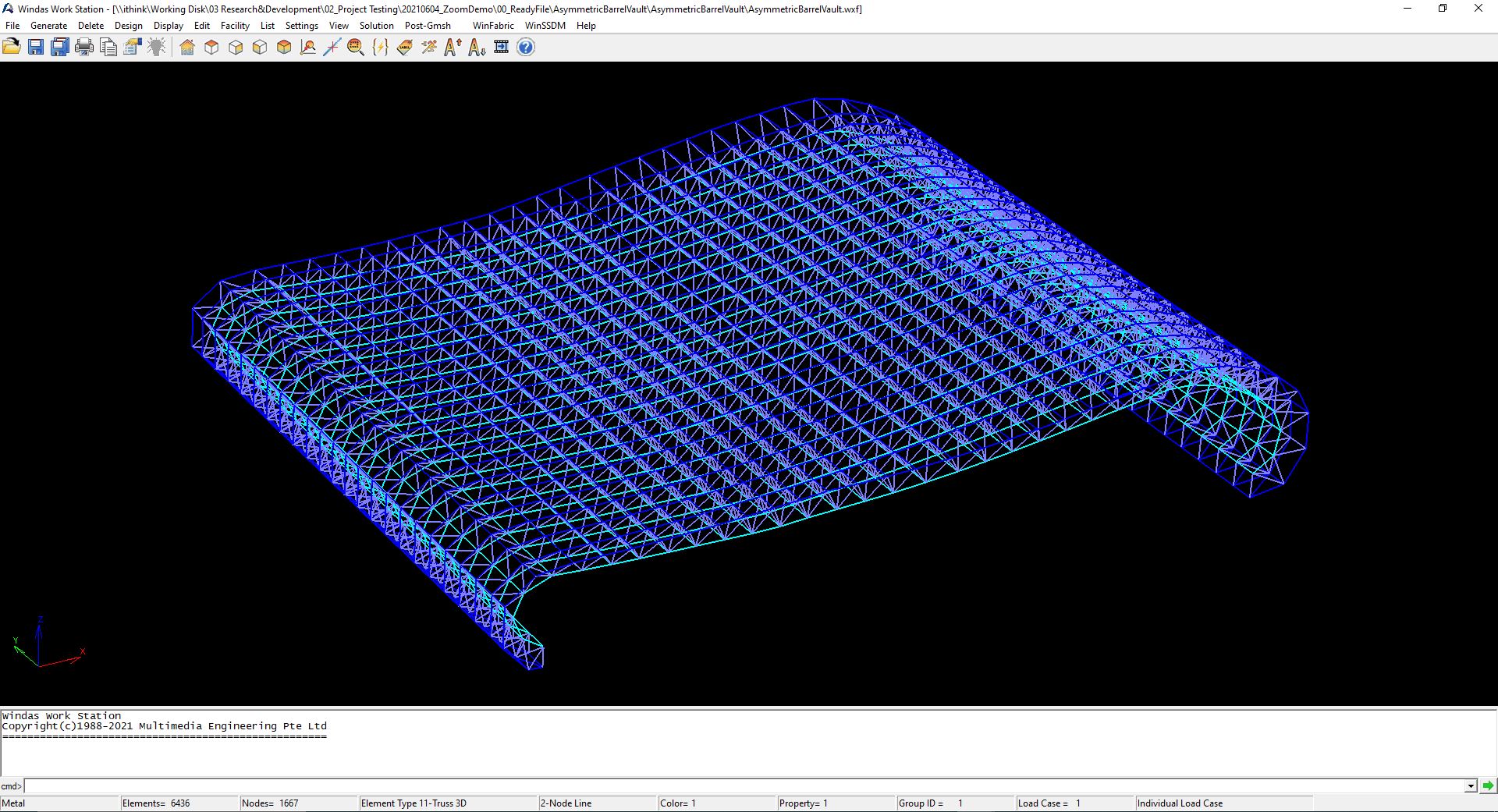

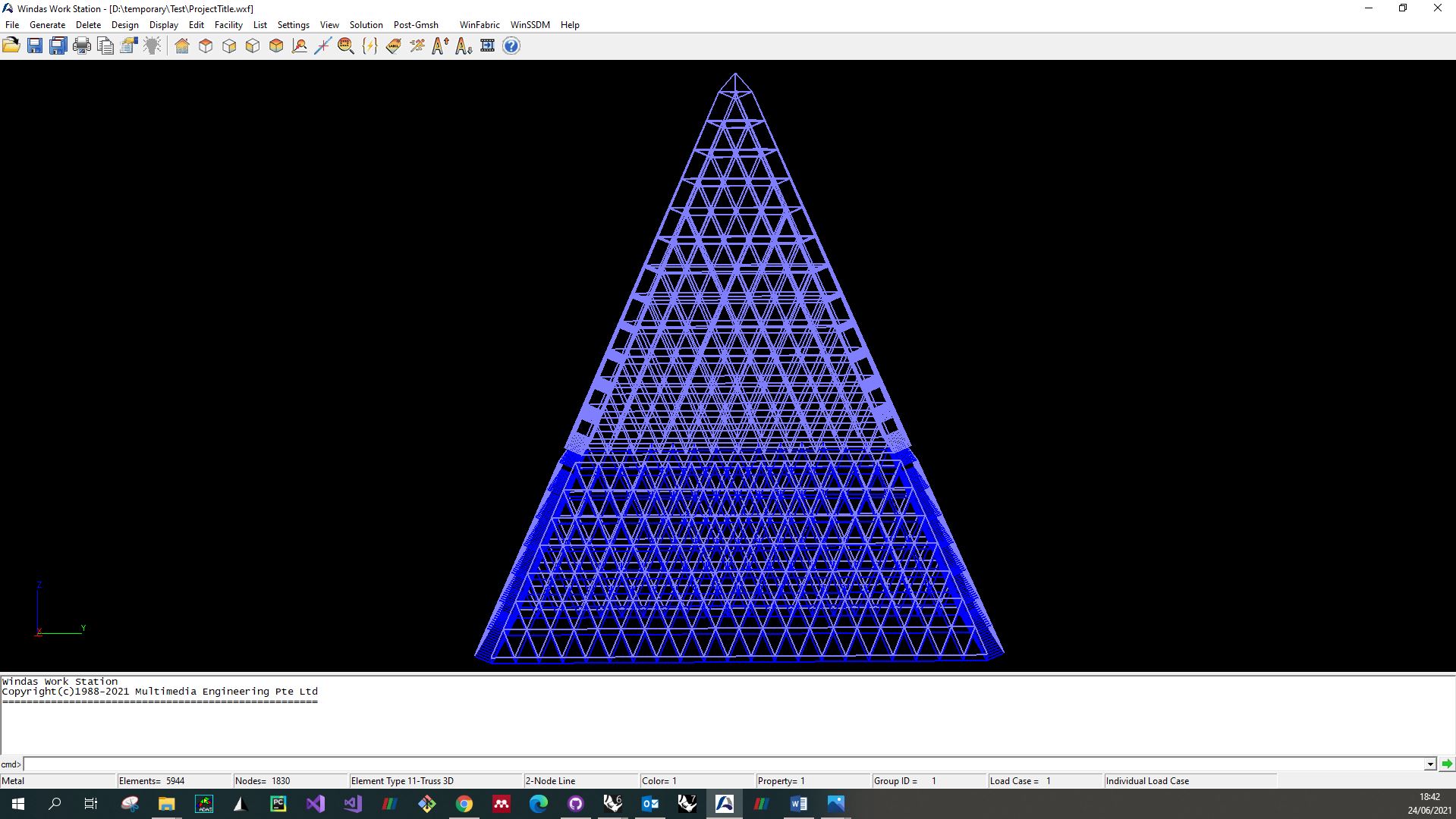

Space Frame and Truss Design

WinFabric

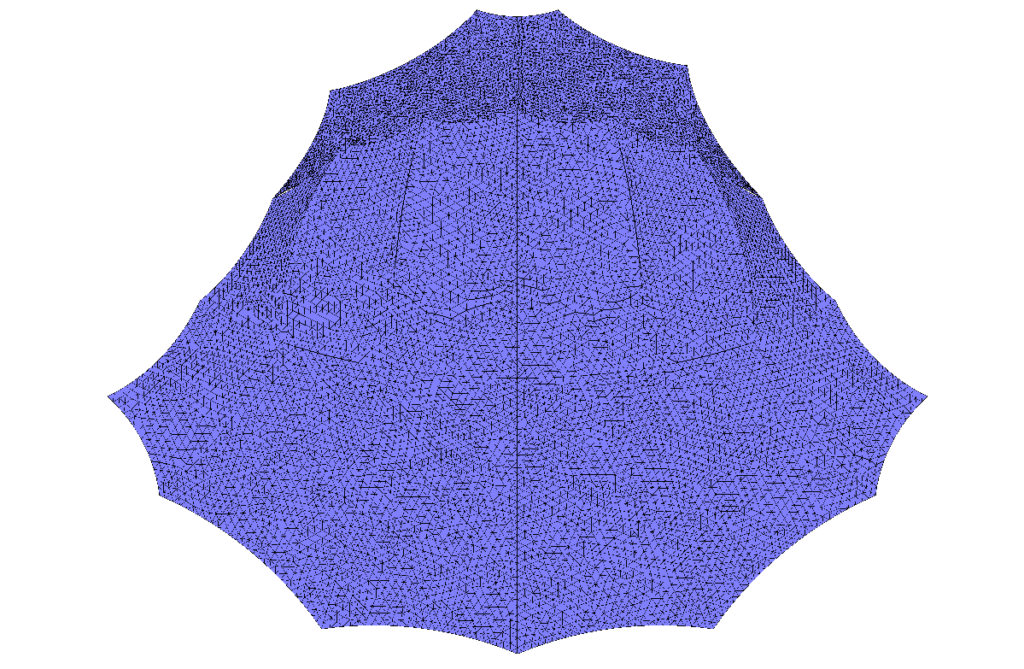

Tensile Membrane Design

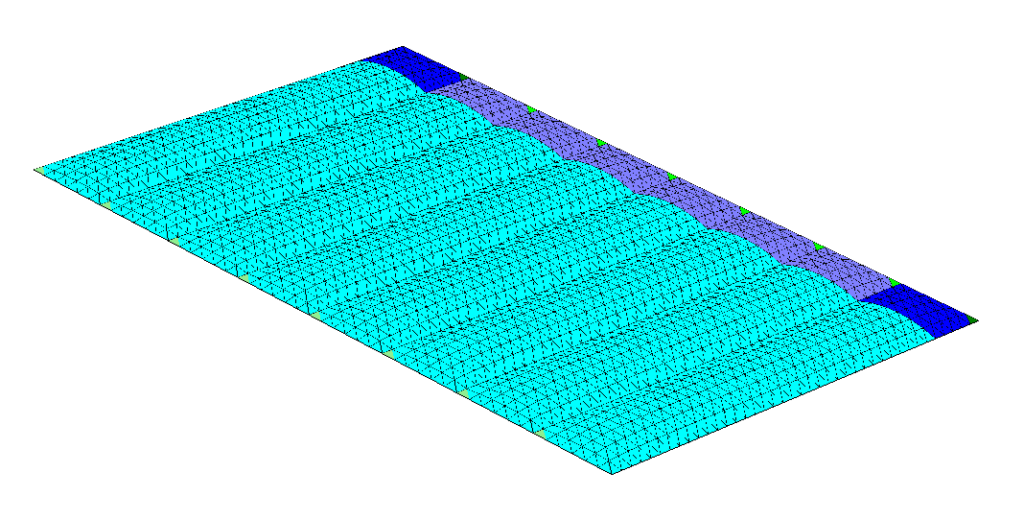

WinETFE

Inflatable Membrane Design

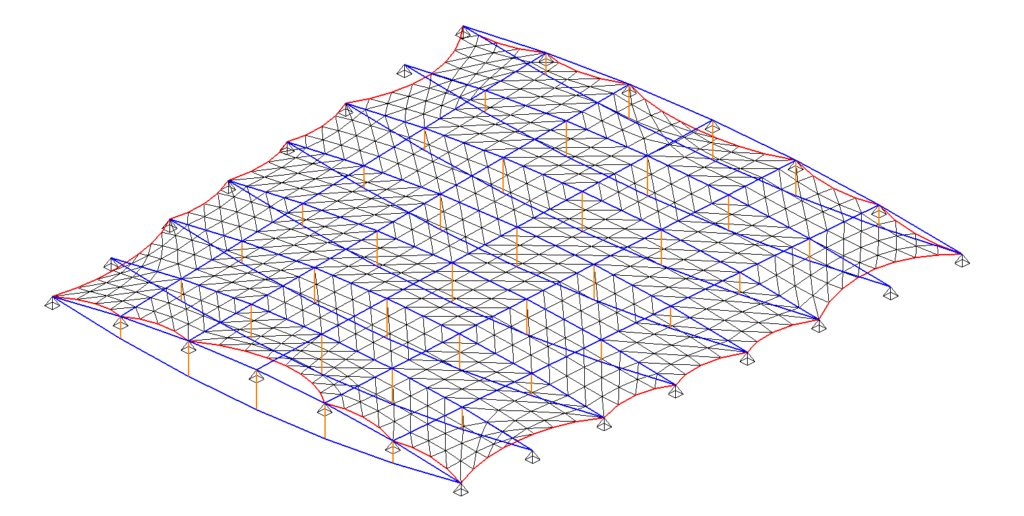

WinTensinet

Wide Span Cable Truss Design

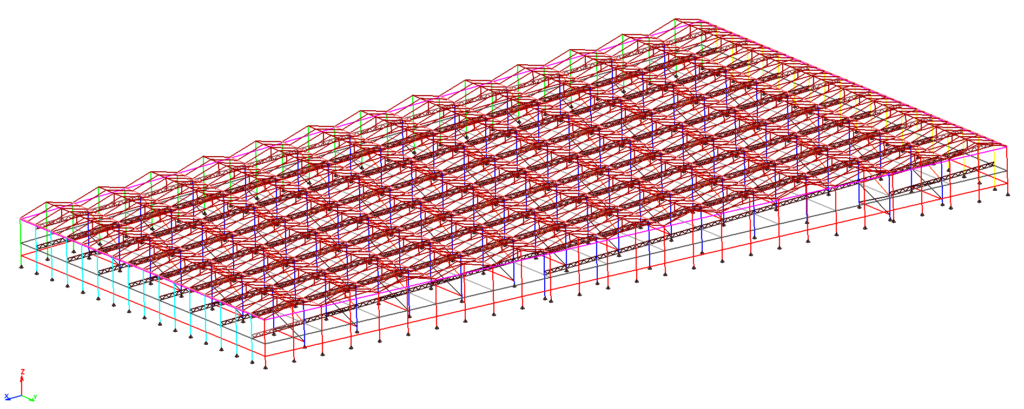

WinGreen

Commercial Greenhouse Design

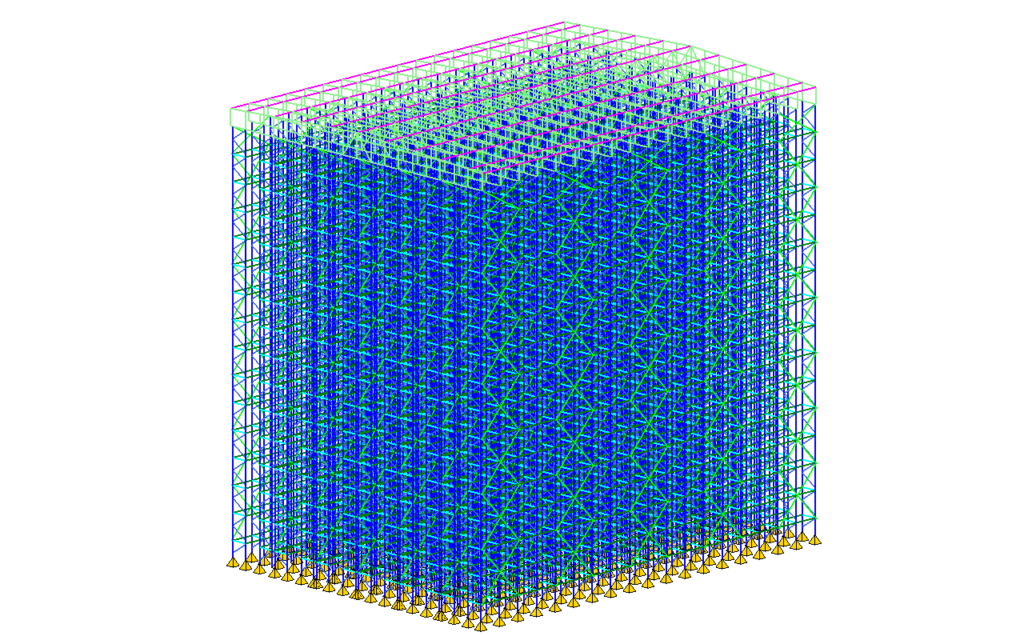

WinRack

Racking System Design

Windas Finite Element Solver

A total solution for lightweight structure

3D finite element solvers for truss, beam, cable, membrane, shell and solid member.  With fast processing capabilities, Windas 64bits fast iterative solver has made the analysis process more efficient and able to execute more than a Million 3D elements within minutes.

Linear solver

To solve the system of linear equation [K] {d} = {R} under static loading

Unfactored Load Combination

Analyze the imposition of governing dead and life loads onto the structure for serviceability state design

Factored Load Combination

Automatic member design with designated load multiplier in any code of practice

P-Delta

Structure geometrical configuration under loading condition for local and global element

Mode Shape

Eigen analysis to obtain natural frequencies and corresponding vibration mode shape

Load Buckling

Eigen analysis to obtain buckling resistance and mode of structure.

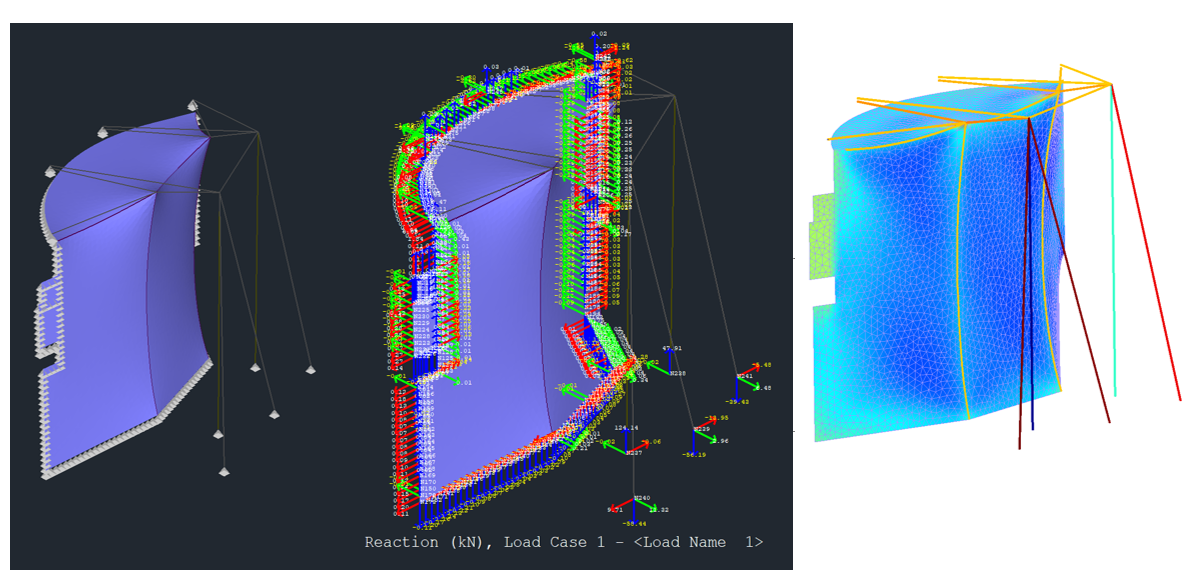

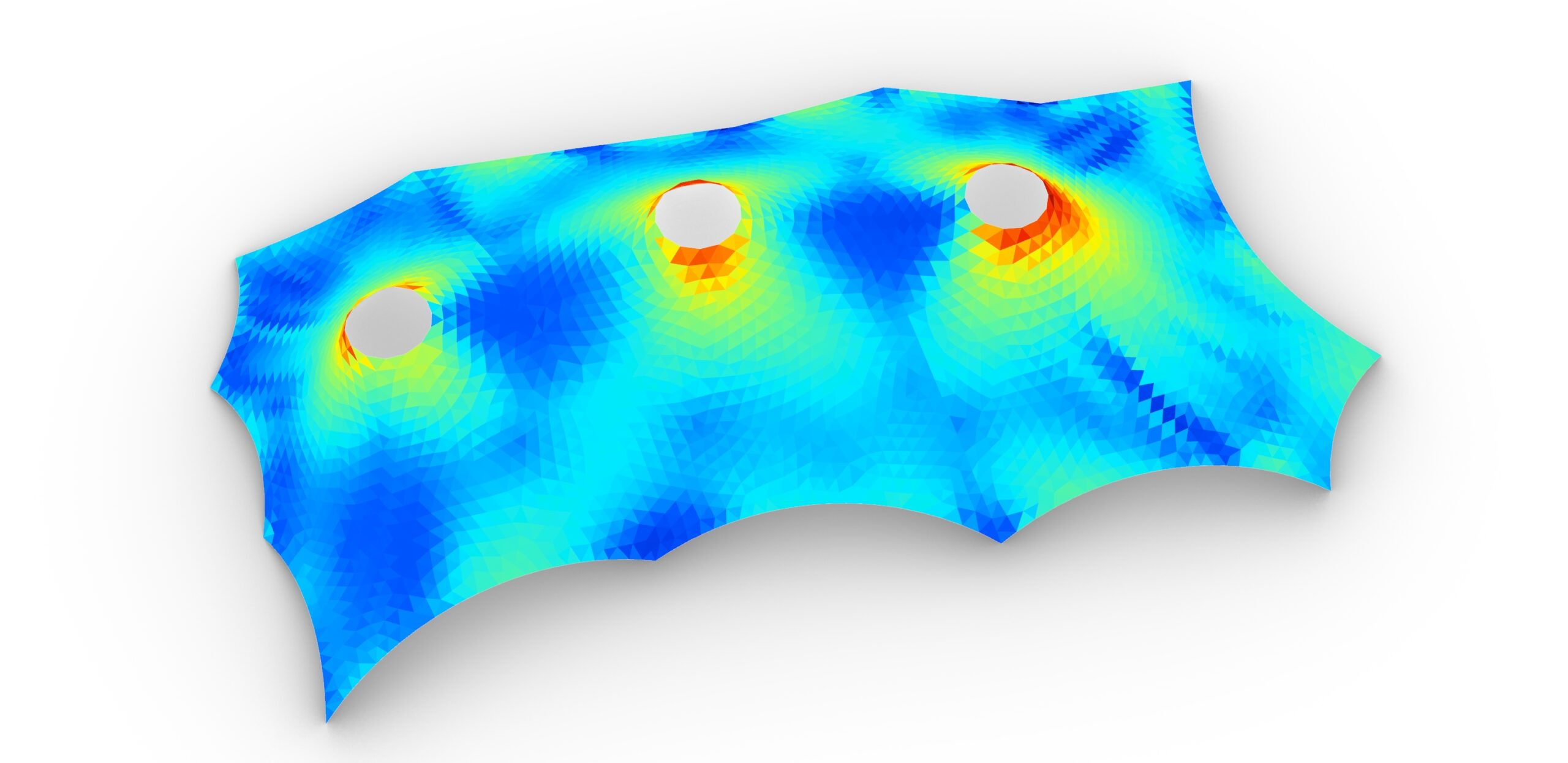

Tensile Membrane

Geometrical Nonlinear solver for membrane and ETFE cushion analysis



Tensinet and Cablenet

Iterative incremental nonlinear analysis for catenary cable and struct supported structure

SemiLoof Shell

Advanced analyses for high performance curved and layered plate and shell elements

Additional Features

Windas comes with other powerful feature such as FEM connection design and CFD Wind Simulator to aid in design analysis.

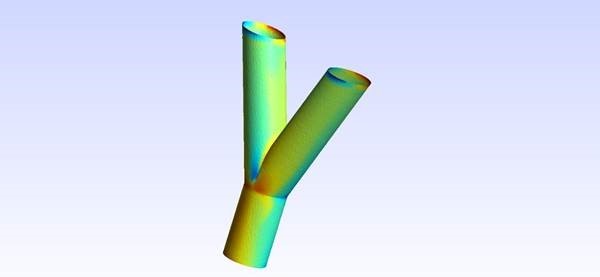

Shell element used to analyse the tree branches of connection.

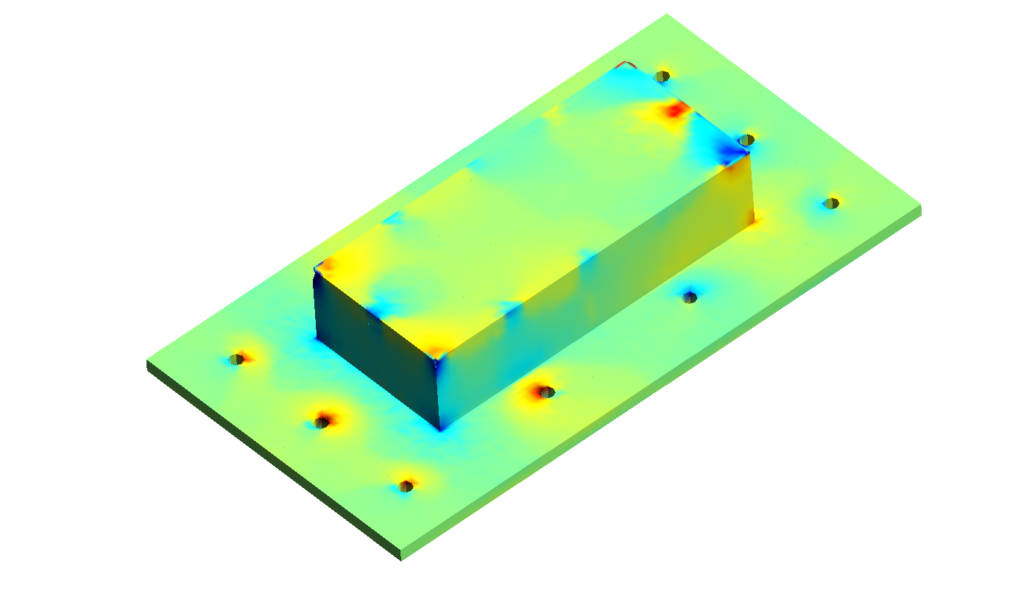

Connection Design

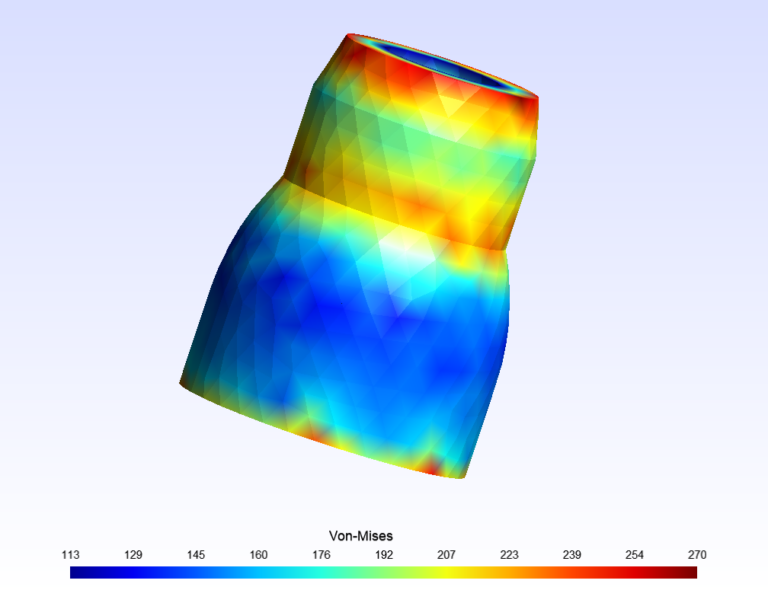

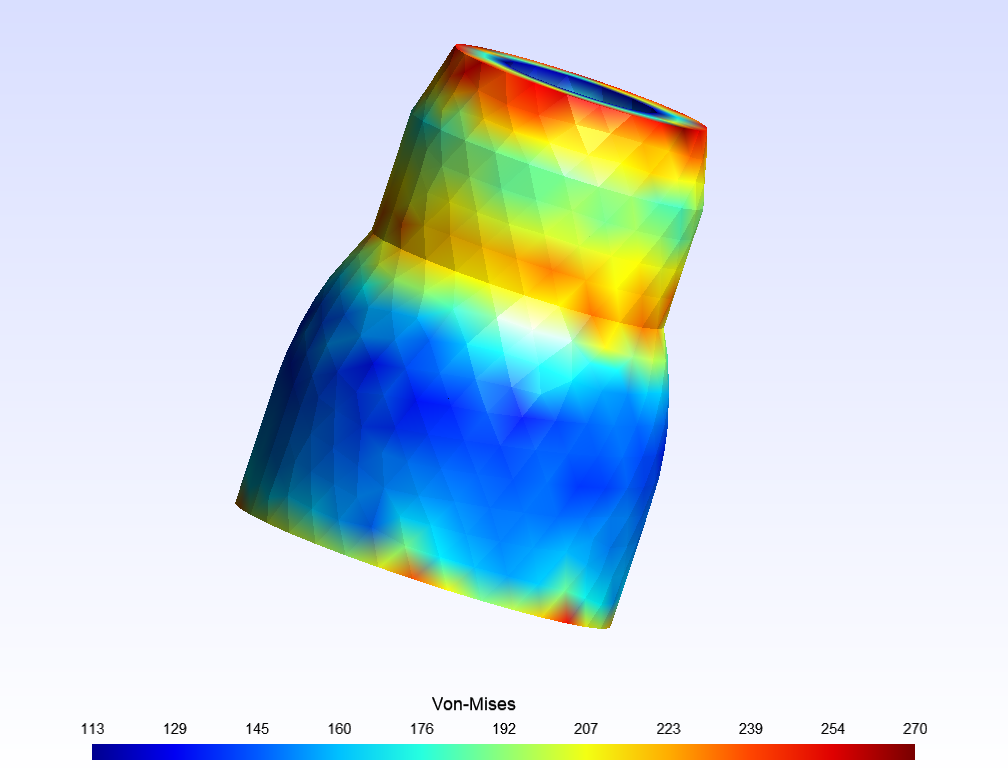

3D solid in tetrahedral, hexahedral and brick element is adopted in steel connection analysis.

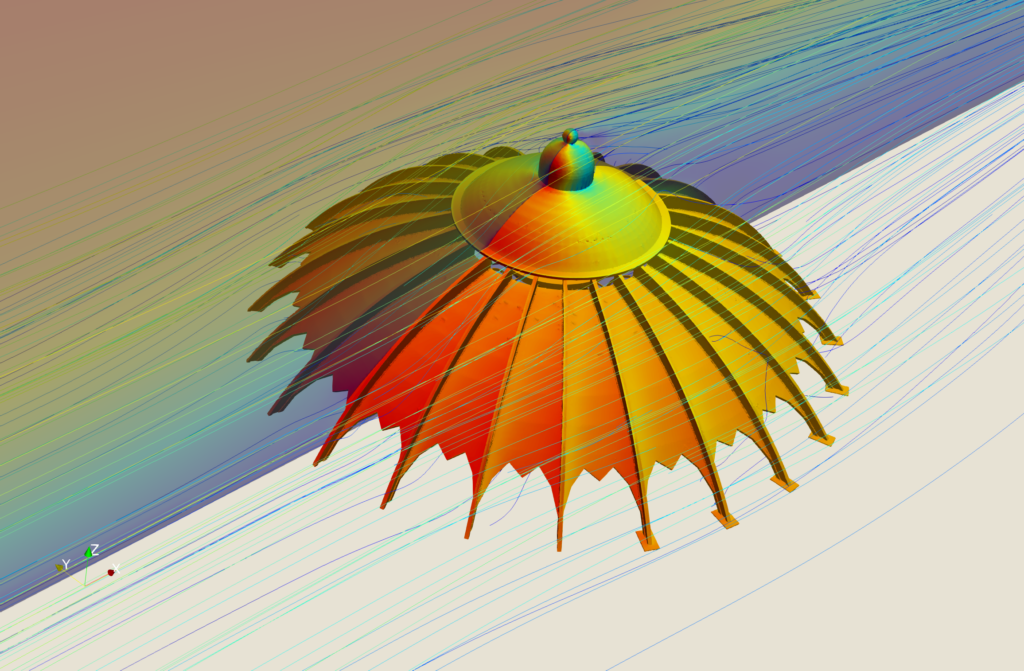

CFD Wind Simulator

Integrated with OpenFOAM toolbox to obtain net wind pressure distribution on the structure.

Solution for various industries and application

Windas offers Phangolin, a Grasshopper Rhino plugin, to create complex 3D model and execute analysis directly from your CAD model. With fast and efficient solver, automatic member design and manufacturing solution for steel, tensile membrane, and tensinet within one compact software.

Phangolin

Phangolin is a parametric structural engineering tool which provides convenience in design & analysis work. Supporting spatial trusses, frames and shells in complex algorithmic geometry. Phangolin users can easily define boundary conditions and alter the structure geometry of their model in Rhino – Grasshopper environment.

Gallery
